Hippuric Acid, Methylhippuric Acids, Mandelic Acid and Phenylglyoxylic Acid in Urine - HPLC
Only 10 µl sample volume
Internal standard included
Simple sample preparation


Hippuric Acid
m-Methylhippuric Acid
Mandelic Acid
o-Methylhippuric Acid
p-Methylhippuric Acid
Phenylglyoxylic Acid
Clinical relevance
Hippuric acid, o-, m-, p-methylhippuric acid, mandelic acid and phenylglyoxylic acid are the main metabolites of the organic solvents: toluene, xylene, and styrene. These toxic compounds are widely used throughout various industries, making the determination of their concentrations relevant to occupational health in a number of different professional fields. Due to their high levels of volatility, they primarily enter the body through inhalation and are rapidly absorbed through the lungs. For occupational health monitoring of people who are exposed to these compounds at work, measurement of the metabolites in urine is more reliable than determining the concentrations of the toxins in the blood, due to their very fast metabolism rates.
For any hazardous substance or its metabolite, a BTV (Biological Tolerance Value) is defined as a threshold value for maximum absorption in biological material. Solvent-related harm to human health can be prevented by performing regular monitoring of urine.
Product advantages
- Only 10 µl sample volume
- Optimised internal standard
- Straightforward sample preparation

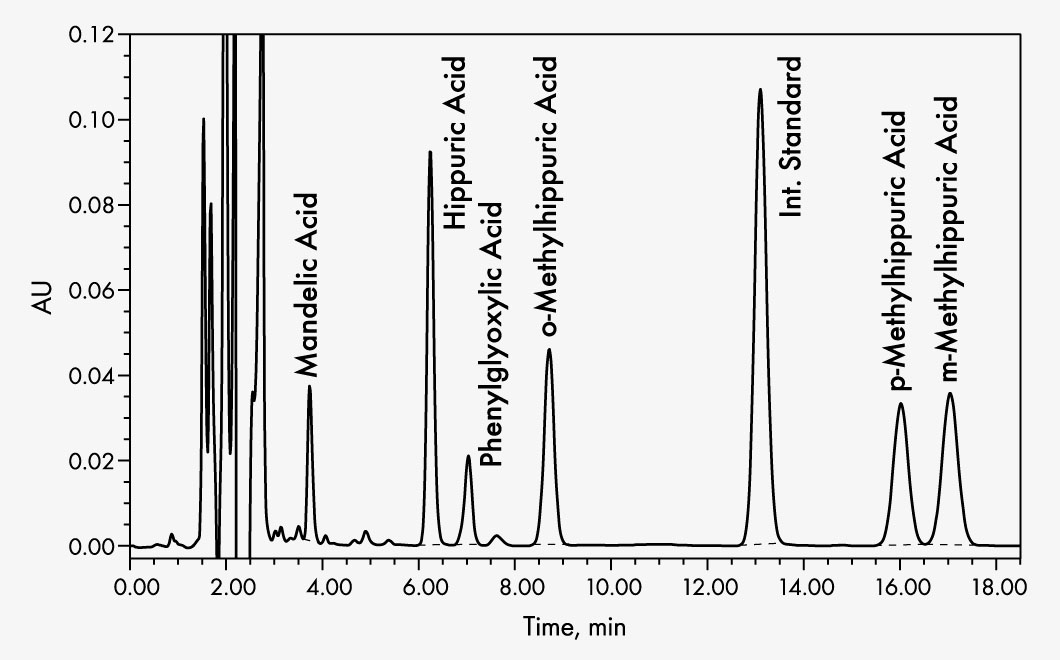

This Chromsystems kit provides rapid and reliable determination of the main metabolites of toluene, xylene, and styrene in a single run. A 10 µl urine sample is all that is required, which is then analysed using an isocratic HPLC system with UV detection following a simple and fast preparation step. The inclusion of a tailor-made internal standard reduces analytical variations and guarantees high precision and reliability of results.
Number of Tests | 100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Limit of quantification | 4–11 mg/l | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Linearity | Hippuric acid: up to 18000 mg/l Methylhippuric acid: up to 7000 mg/l Mandelic acid: up to 4000 mg/l Phenylglyoxylic acid: up to 1650 mg/l | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recovery | 102–109 % | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intraassay | CV = 0.7–1.1 % | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interassay | CV = 0.9–4.6 % | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analysis Time | approx. 20 min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BEI values | Hippuric acid: 1500 mg/l; Methylhippuric acid: 2000 mg/l; Mandelic acid: 400 mg/l; Phenylglyoxylic acid: 100 mg/l |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sample Preparation |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sample Stability | The prepared samples are stable for 24 hours at room temperature, at +2 to +8 °C up to 5 days and below -18 °C up to 14 days. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specimen | Urine, collected after end of shift | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pre-analytic Treatment | Patient sample must be kept cool for transport. Storage life is up to 5 days at +2 to +8 °C and up to 3 months at -18 °C. Avoid repeated freeze/thaw cycles.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Injection Volume | 20 µl | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flow rate | 1.0 ml/min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Column temperature | ambient (~ 25 °C) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wavelength | 207 nm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Please note | The freely available information on this website, in particular on the sample preparation, are not sufficient to work with our products. Please read instructions and warning notices on products and/or instruction manuals. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Method of Analysis | HPLC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parameter | Hippuric Acid, m-Methylhippuric Acid, Mandelic Acid, o-Methylhippuric Acid, p-Methylhippuric Acid, Phenylglyoxylic Acid | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Complete Specification |
HPLC parametersFor the Chromsystems HPLC analysis of occupational medicine parameters in urine any isocratic HPLC system with UV detector is suitable.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Additional Info | Any isocratic HPLC system with UV detector is suitable. |
-
