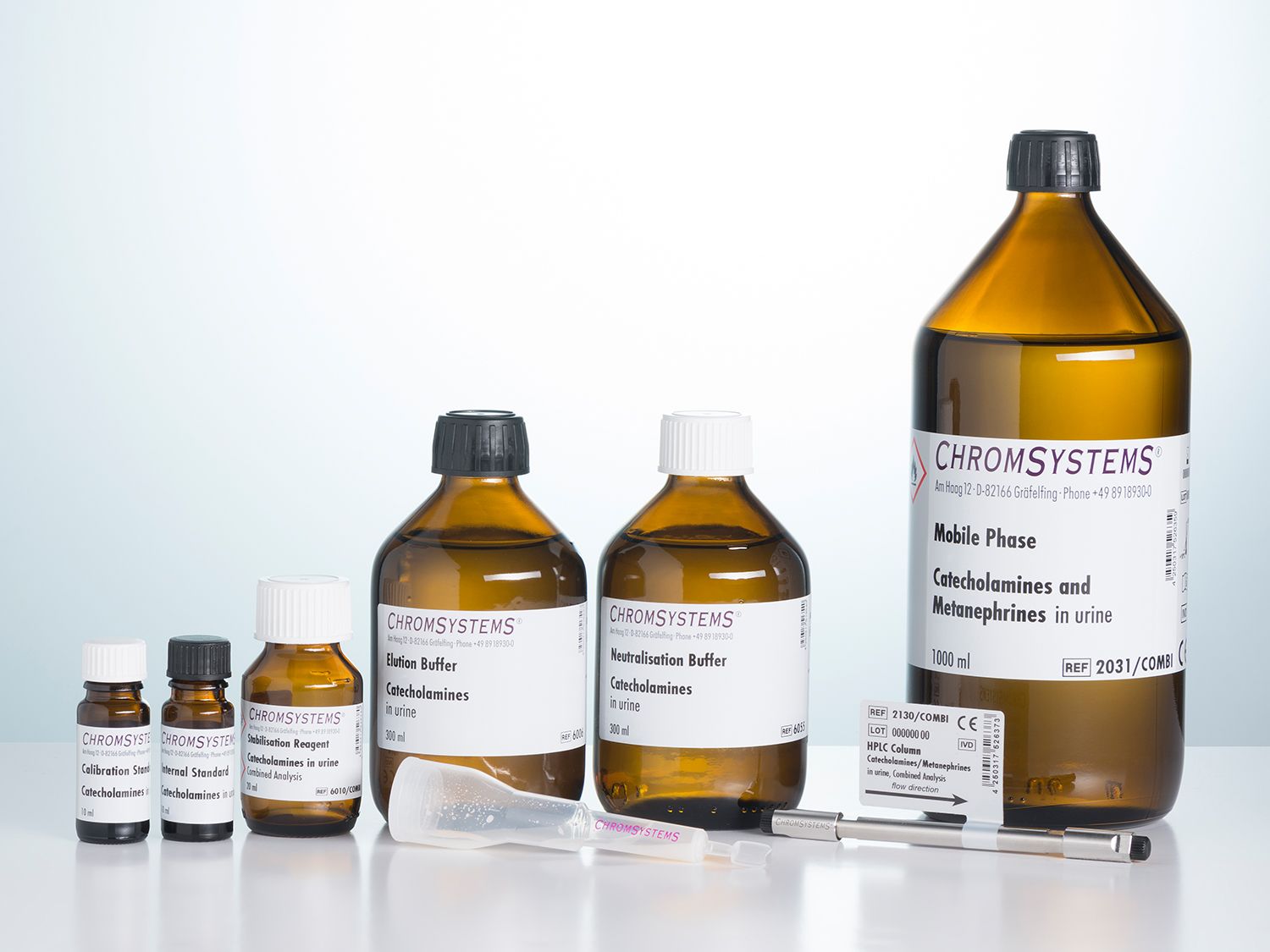

Catecholamines in Urine, Combined analysis - HPLC

Order No.: 6000/COMBI, for 100 tests
Parameters:
3-Methoxytyramine, Adrenaline (Epinephrine), Dopamine, Metanephrine, Noradrenaline, Normetanephrine

Short analysis time < 6 min
Only 1 HPLC column and 1 Mobile Phase for 2020/COMBI and 6000/COMBI

CE-IVD validated product ready for IVDR within timeframes and transition periods specified by the IVDR-2022 regulation

Adrenaline (Epinephrine)

Dopamine

Noradrenaline



3-Methoxytyramine

Metanephrine

Normetanephrine

Clinical relevance

The catecholamines adrenaline (epinephrine), noradrenaline (norepinephrine) and dopamine are biogenic amines, which play a central role in the body as hormones and neurotransmitters. Adrenaline and noradrenaline are produced in the adrenal medulla and the sympathetic nervous system. Dopamine is a neurotransmitter in the brain and acts as a local messenger substance in the peripheral nervous system.



Product advantages

  • Short analysis time of less than 6 minutes
  • No changes to setup are needed due to identical column and mobile phase



This assay enables the combined determination of catecholamines together with metanephrines in urine (2020/COMBI). It is an exceptionally sensitive and reliable method for detecting pheochromocytomas with an analysis time of less than 6 minutes. The highly selective separation column and the optimised mobile phase are used for the analysis of both catecholamines and metanephrines, so no change of the chromatographic system is required. The established specific sample preparation using solid phase extraction guarantees simple and safe handling and reproducible results.

More Information
Method of Analysis HPLC
Number of Tests 100
Please note The freely available information on this website, in particular on the sample preparation, are not sufficient to work with our products. Please read instructions and warning notices on products and/or instruction manuals.
Lower Limit of Quantitation 1 μg/l
Upper Limit of Quantification 1–1000 μg/l
Recovery 81-88 %
Intraassay

CV = 0.9-2.7 %

Interassay

CV = 2.1-4.1 %

Run Time < 6 min
Specimen Urine
Sample Preparation

Stabilisation

  • 3 ml urine + 100 μl Internal Standard + 6 ml Neutralisation Buffer.
  • Adjust pH value.

Extraction

  • Apply the sample on the Sample Clean Up Column, discard effluent.
  • Fill up twice with ultrapure water (HPLC grade) and discard the effluent.

Elution

  • Apply 6 ml Elution Buffer on the Sample Clean Up Column and collect the eluate.
  • Add 200 μl Stabilisation Reagent.
    Mix each eluate thoroughly.

HPLC Analysis

  • Inject 10 μl into the HPLC system.
Injection Volume 10 µl
Flow Rate 0.9 ml/min
Column Temperature 30 °C
Additional Info

For the combined HPLC analysis of catecholamines and metanephrines any isocratic HPLC system with electrochemical detector can be used.

Parameters 3-Methoxytyramine, Adrenaline (Epinephrine), Dopamine, Metanephrine, Noradrenaline, Normetanephrine
Potential +580/+640 mV
The following components are included in the kit:
The following products are not included in the kit but are required for the application of the method:
As a customer please login or register to gain full access.
