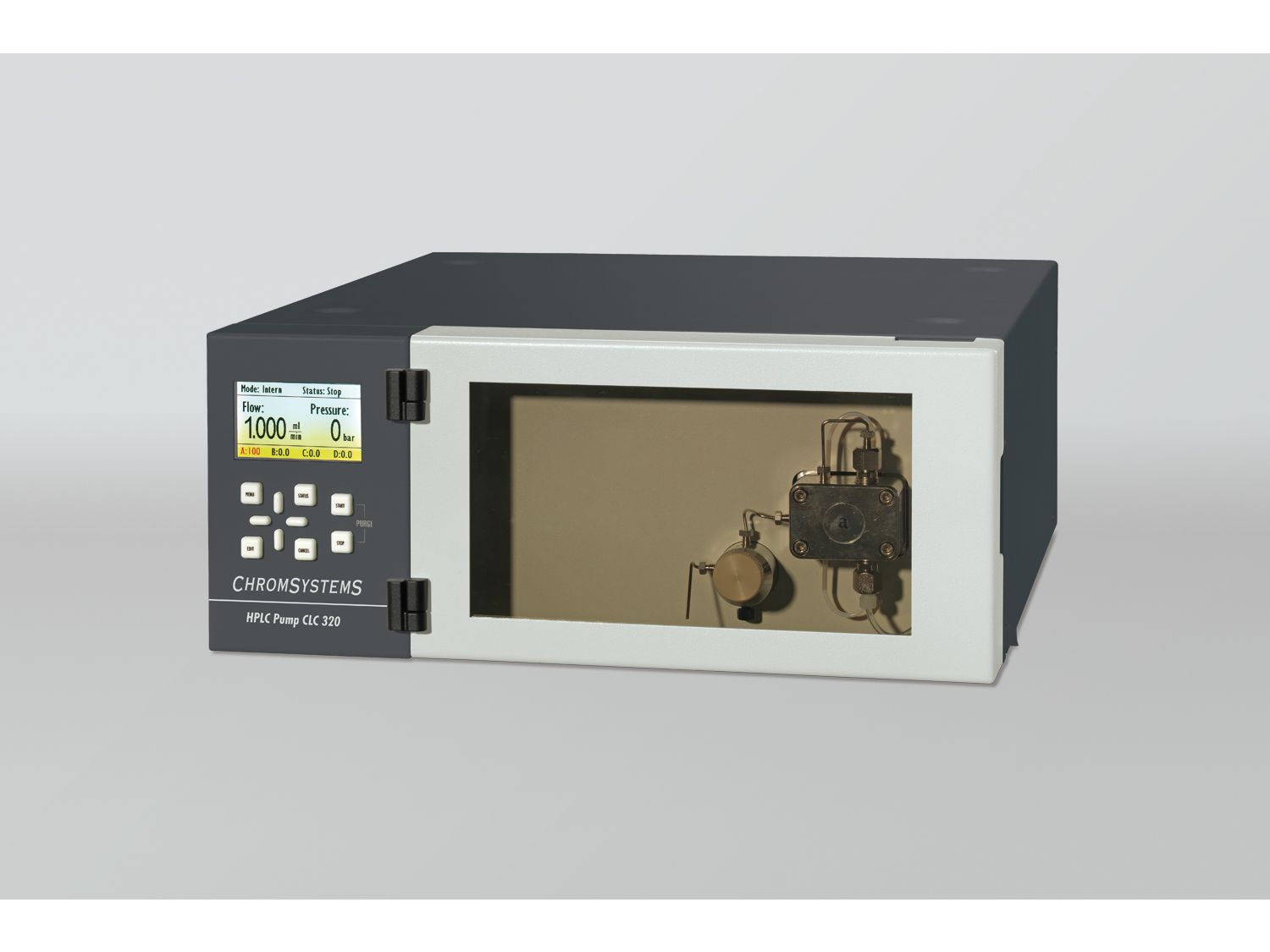

HPLC Pump Chromsystems CLC 320
Order No.: 42350
High flow rate consistency
Low pulsation
Reliable flow
Smaller volume vacuum degasser
Low maintenance effort
- High flow rate consistency
- Low pulsation
- Reliable flow with all common mobile phases, making it ideally suited for routine clinical diagnostic use
- Smaller volume vacuum degasser, requiring only 500 μl
- Pump head drive is permanently lubricated as well as accessible, significantly decreasing the maintenance effort
| Solvent delivery system | Dual piston |
|---|---|
| Max. pressure | 40 MPa (400 bar; 0–6000 PSI) |
| Flow rate range | 0.001–10 ml/min |
| Compressibility factor | From 0.6 to 1.0 |
| Operating modes | Constant flow |
| Display | 4 inch colour TFT |
| Programmable Run Time | 0.1–999.9 min |
| Programmable Delay Time | 0.1–999.9 min |
| Power requirements | 100–250 V, 47–63 Hz |
| Dimensions | 478 x 396 x 165 mm (L x W x H) |
| Weight | approx. 7 kg |
- High flow rate consistency
- Low pulsation
- Reliable flow with all common mobile phases, making it ideally suited for routine clinical diagnostic use
- Smaller volume vacuum degasser, requiring only 500 μl
- Pump head drive is permanently lubricated as well as accessible, significantly decreasing the maintenance effort
| Solvent delivery system | Dual piston |
|---|---|
| Max. pressure | 40 MPa (400 bar; 0–6000 PSI) |
| Flow rate range | 0.001–10 ml/min |
| Compressibility factor | From 0.6 to 1.0 |
| Operating modes | Constant flow |
| Display | 4 inch colour TFT |
| Programmable Run Time | 0.1–999.9 min |
| Programmable Delay Time | 0.1–999.9 min |
| Power requirements | 100–250 V, 47–63 Hz |
| Dimensions | 478 x 396 x 165 mm (L x W x H) |
| Weight | approx. 7 kg |
