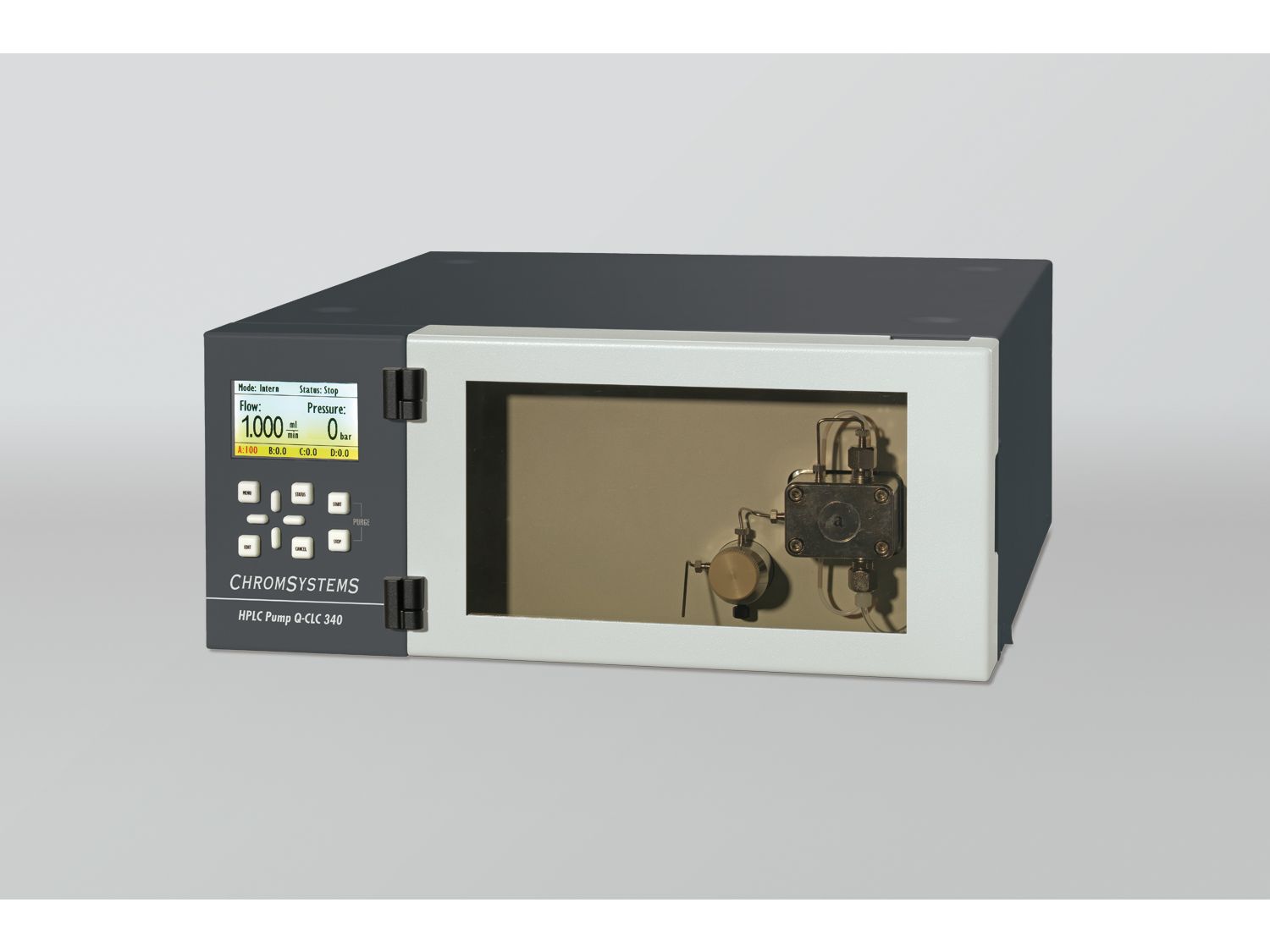

HPLC Gradient Pump Chromsystems Q-CLC 340
Order No.: 42360
High flow rate consistency
Low pulsation
Ideally suited for routine clinical diagnostic use
Smaller volume vacuum degasser
Low maintenance effort
- High flow rate consistence
- Low pulsation
- Reliable flow with all common mobile phases, making it ideally suited for routine clinical diagnostic use
- Smaller volume vacuum degasser, requiring only 500 μl
- Pump head drive is permanently lubricated as well as accessible, significantly decreasing the maintenance effort
| Gradient | Quaternary low pressure mixing |
|---|---|
| Max. pressure | 40 MPa (400 bar; 0–6000 PSI) |
| Flow rate range | 0.001-10 ml/min |
| Compressibility factor | Programmable from 0.7 to 1.0 |
| Operating modes | Gradient and isocratic |
| Display | 4 inch colour TFT |
| Power supply | 100–250 V, 47–63 Hz |
| Dimensions | 478 x 396 x 165 mm (L x W x H) |
| Special functions | Integrated control of the quaternary gradient, menu-driven programming |
