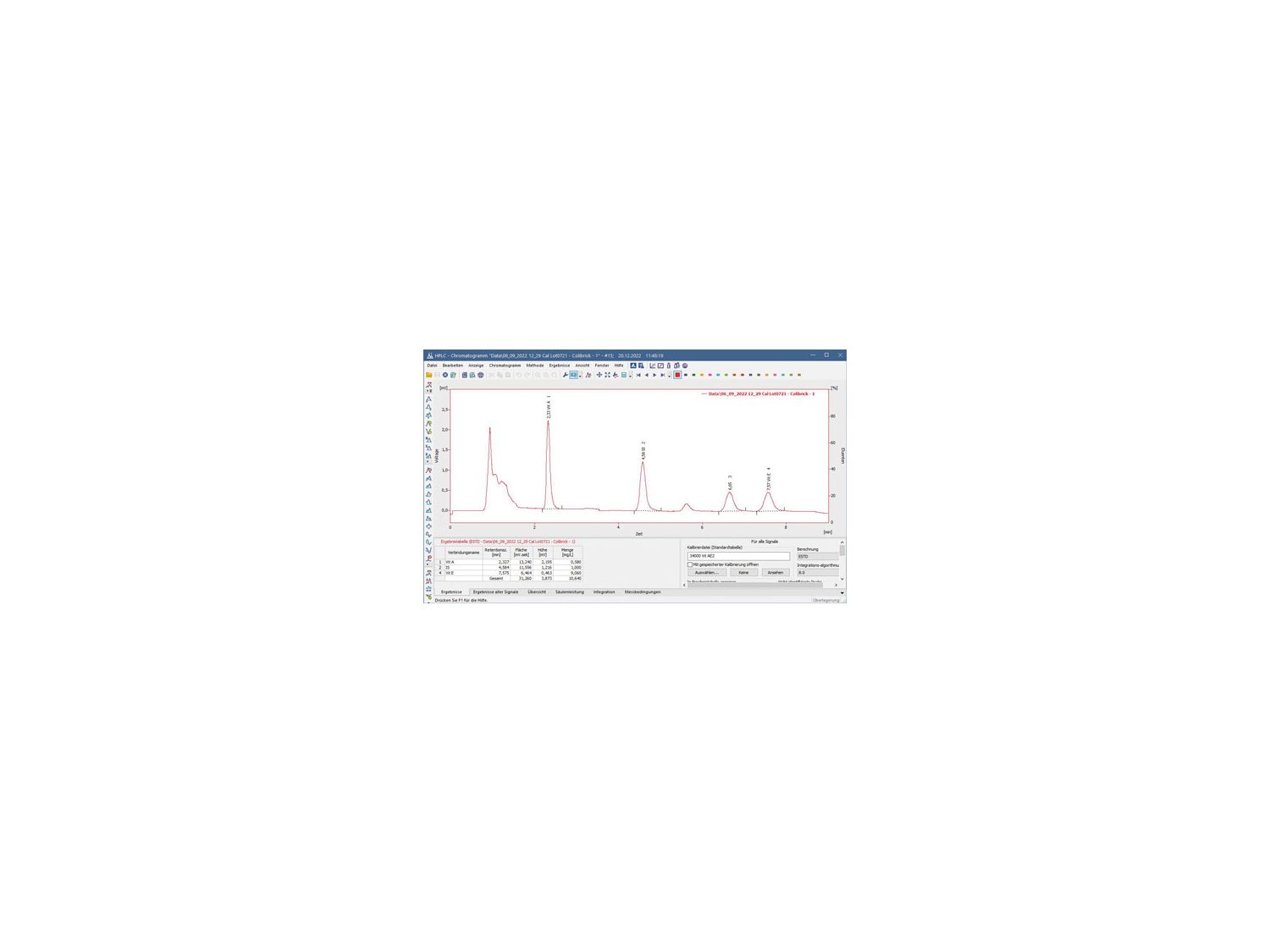

Clarity Control and Data Analysis Software - Single Instrument

Order No.: 42531

Control one single HPLC system and acquire data with up to 32 signals/channel

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Downloads

The Clarity software offers the users a broad spectrum of functions.

Product features:

Integration: Multiple tools and parameters for chromatogram modification
Calibration: Several methods including internal and external standard methods
Batch processing for large sets of data
Fully CFR21 Part 11 compliant
Available languages: English, German, French and Spanish
Widely used software, compatible with large number of instruments
LIMS-connectivity
Data export in all common electronic formats
Post-run: Automatic display of chromatogram and report-print

For the full list of product features, please see the data sheet "Clarity product features" in the Downloads section.

Clarity hardware:

Required and optional hardware products for your individual HPLC instrument are listed below:

Order no.	Hardware	Description
42533	Clarity Workstation Windows 10 Pro (64bit)	• Excl. 24” Monitor (available as 42534)
42541 42542 42544	Colibrick Set: External 24-bit USB A/D Converter	• One (42541), two (42542) or four (42544) fully independent and isolated channels • Input range: unipolar and bipolar, each channel independently 156.26 mV, 1250 mV or 12123 mV • Non-linearity: <0,0003% • Including data cable for 1, 2 or 4 analogue inputs • Warranty: 3 years
42543	Zebrick Set	• External USB pump control converter incl. cable • Up to four channels, equipped with 16 bit D/A-converters • Voltage range: ± 10 V • Powered via USB port • Including cable for connection to CLC 300 HPLC pump • Warranty: 3 years
42545	MultiCOM Set	• 1x USB to 6x RS232 converter • Incl. USB cable • Warranty: 3 years
42549	Validation Kit	• Peak generator for A/D converter • SW methods for OQ • Warranty: 3 years

Individual software and hardware configuration will be specified by the responsible product specialist and the scientific support.
Do you have any questions or would like to learn more?
For more information please contact your local sales representative.
